AEG External Barrel Dimensions

We are designing more 3D printed airsoft parts. So we measured an external barrel. Posting the dimensions here. Might be useful for the builder in you.

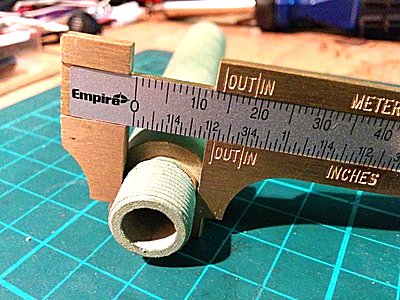

14mm male thread diameter: 13.8mm

Attached Image:

14mm Male Thread Dimension (Small).jpg

Airsoft3D
Tue, 23 Sep 2014 03:00:26 +0400

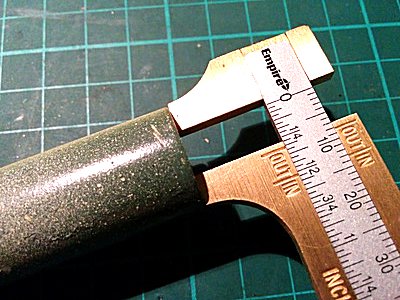

The 14mm female thread dimension is 13.1mm.

Attached Image:

14mm Female Thread Dimension (Small).jpg

Airsoft3D
Tue, 23 Sep 2014 04:49:23 +0400

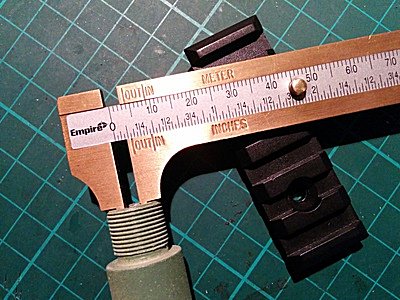

The inner diameter of the external barrel is 9mm.

Attached Image:

Tube Dimension (Small).jpg

Airsoft3D
Tue, 23 Sep 2014 04:50:50 +0400

The outer diameter of the external barrel could be any size. We measured several extensions, an adapter, and an external barrel... they range from 19mm to 22mm. The external barrel that connects to the receiver has the largest diameter.
