GoPro Screw and Nut Specifications

Designing GoPro mount parts for scope mount now. So here are the specs for the thumbscrew and nut.

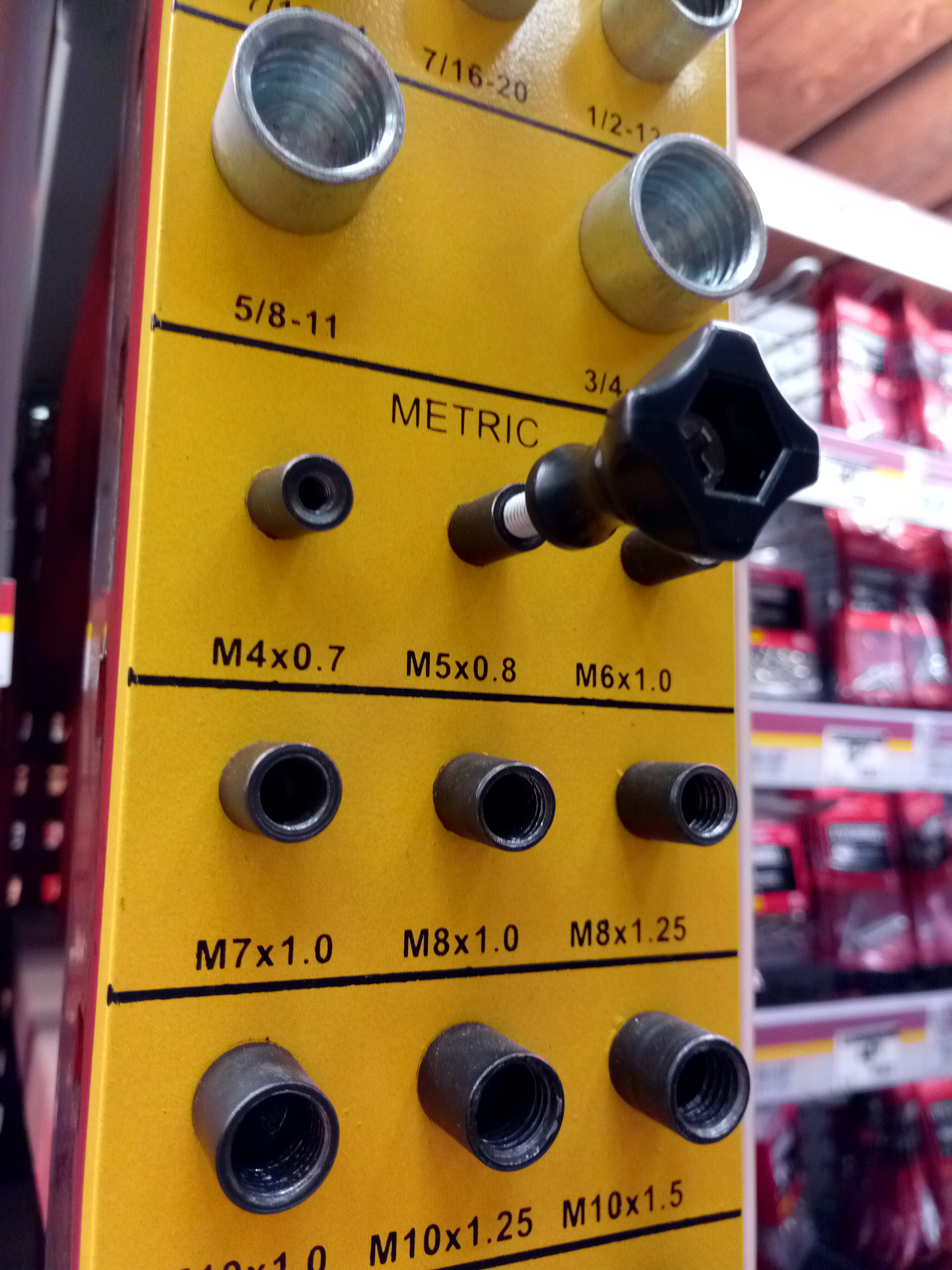

Photo below shows the thumbscrew spec, which is M5-0.8

Attached Image:


Joe
Thu, 23 Feb 2017 11:53:40 -0800

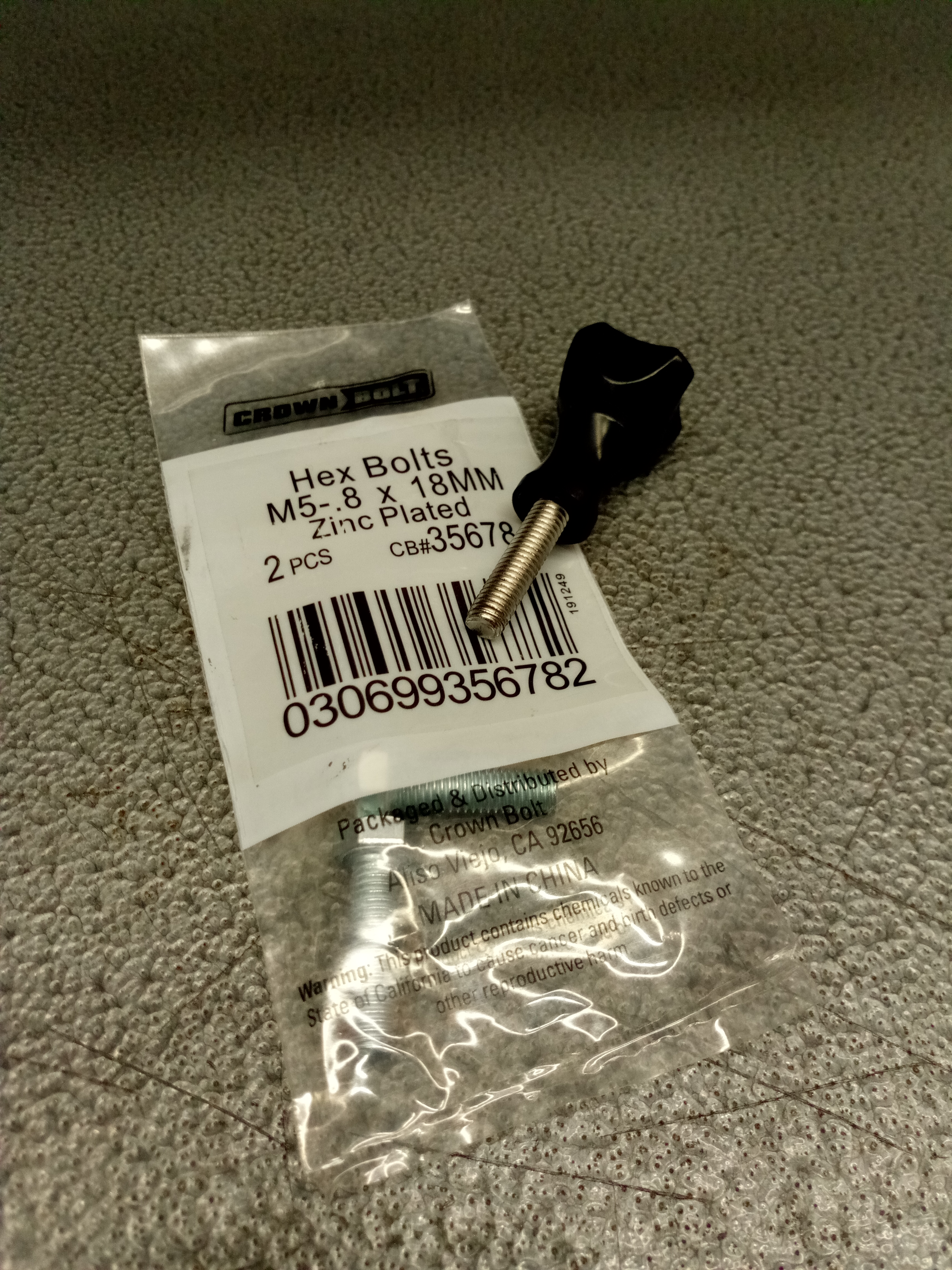

Then length of the screw is 18mm, as shown in the photo below.

The nut, of course, is a M5-0.8 nut.

Attached Image:


Joe
Thu, 23 Feb 2017 11:54:58 -0800

20mm bolts also works fine; tested with genuine GoPro equipment.

Joe
Fri, 07 Apr 2017 03:00:00 -0700
